LincAccess Software User Manual

Table of Contents

I. Overview
II. Configuration of the Penetrated Machine

  • Linux System
  • Windows System

III. Configuration of the Penetrating Machine

  • Windows System

IV. Common Issues and Solutions

I. Overview

LincAccess is a reverse proxy-based software designed to enable remote access to intranet devices. This software allows easy access to intranet resources without complex network configuration. This document provides first-time users with detailed installation and operational guidance.

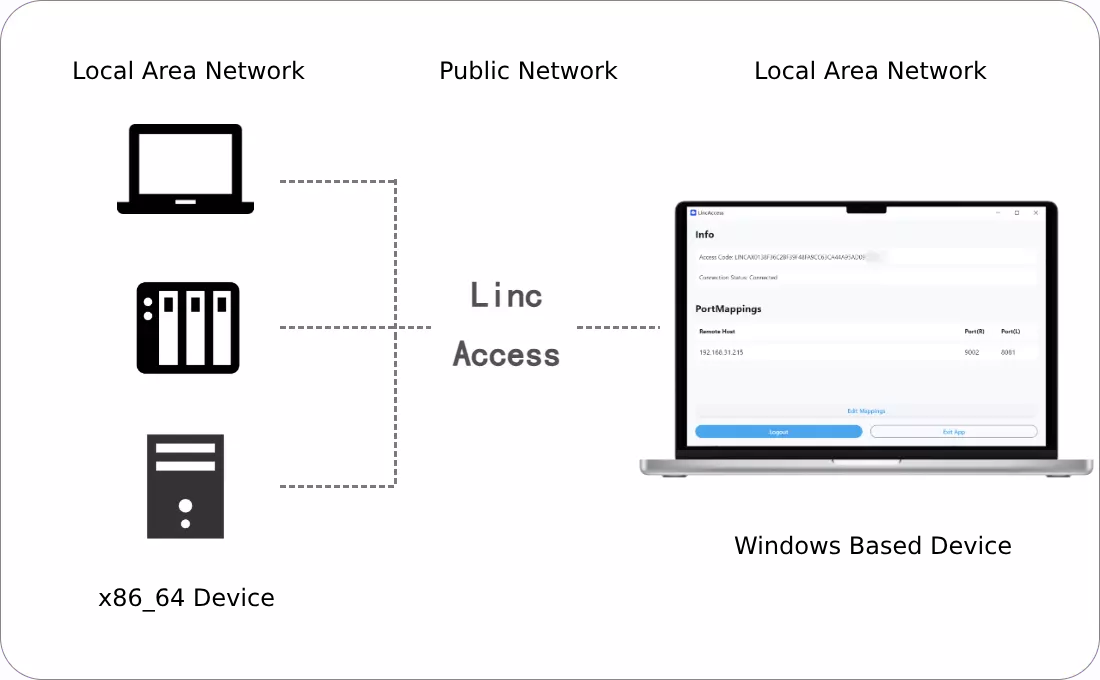

LincAccess轮播图

II. Configuration of the Penetrated Machine

The penetrated machine refers to the device you wish to access remotely via LincAccess. Configuration steps for Linux and Windows systems are outlined below.

Linux System

1. Install Docker and Configure Docker Image Acceleration Address

Docker is the foundational environment for running LincAccess containers. Ensure Docker is installed on your Linux system. Refer to the following link for installation:

Debian-based systems:
https://docs.docker.com/engine/install/debian/

Verify Docker functionality:
Execute the command:

BASH

docker pull hello-world

Using default tag: latest
latest: Pulling from library/hello-world
c1ec31eb5944: Pull complete
Digest: sha256:305243c734571da2d100c8c8b3c3167a098cab6049c9a5b066b6021a60fcb966
Status: Downloaded newer image for hello-world:latest
docker.io/library/hello-world:latest

If Pull complete appears, Docker is successfully installed.



2. Pull Image and Run Container
  1. Pull LincAccess image using Docker:
BASH

docker pull kriswhale/linc-access-app:[version]

Find the latest version at: https://hub.docker.com/r/kriswhale/linc-access-app/tags



  1. Run the container:
BASH

docker run -dp 8099:80 --name linc-access-app kriswhale/linc-access-app:[version]
  • 8099 is the host port mapping (modifiable as needed)
  • -p 8099:80 maps host port 8099 to container port 80



3. Access Container via Browser
  1. On any browser-enabled device, visit:
http://[Penetrated_Machine_IP]:[Port_Number]

Example: If IP is 192.168.31.100 and port is 8099, visit: http://192.168.31.100:8099

  1. Enter correct credentials and set a pairing code (access credential). Securely store this code:
  • LincAccess Account: Your account
  • LincAccess Password: Your password
  • Pairing Code: Custom verification code (confidential access credential)

Windows System

1.Windows server configuration method 1 (available for Linux and Windows)
（1）Install Docker
POWERSHELL

docker pull hello-world

Sample output:

TEXTUsing default tag: latest
latest: Pulling from library/hello-world
c1ec31eb5944: Pull complete
Digest: sha256:305243c734571da2d100c8c8b3c3167a098cab6049c9a5b066b6021a60fcb966
Status: Downloaded newer image for hello-world:latest
docker.io/library/hello-world:latest

If Pull complete appears, Docker is functional.

docker-hello



（2）Pull Image and Run Container
  • Open PowerShell/Command Prompt and pull the image:
POWERSHELL

docker pull kriswhale/linc-access-app:[version]

Find latest version at: https://hub.docker.com/r/kriswhale/linc-access-app/tags

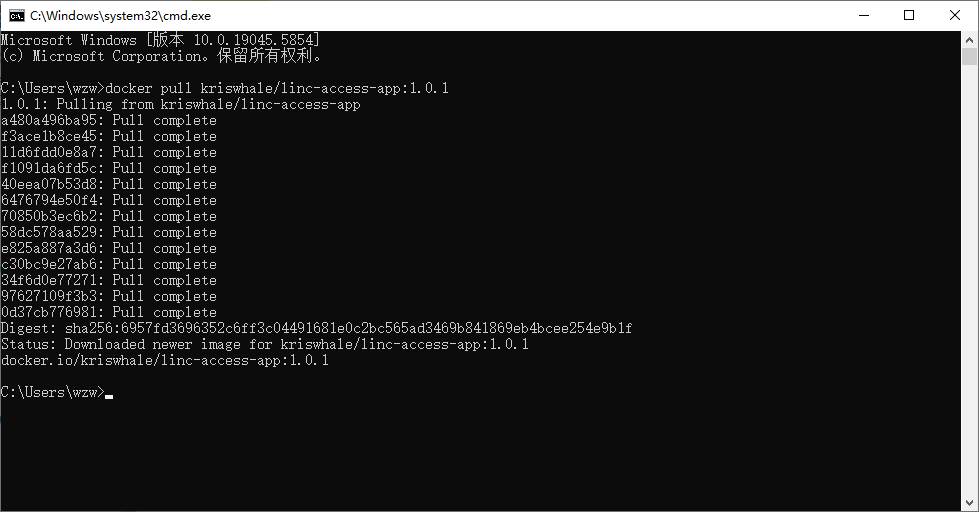

docker-image

  • Run the container:
POWERSHELL

docker run -dp 8099:80 --name linc-access-app kriswhale/linc-access-app:[version]

8099 maps to container port 80 (modifiable). Access via `localhost:8099

docker-container



（3） Access Container via Browser
  • On the local machine, visit:
http://127.0.0.1:[Port_Number]

Example: Port 8099 → http://localhost:8099

Enter credentials and pairing code:

  • LincAccess Account: Your account
  • LincAccess Password: Your password
  • Pairing Code: Verification code (confidential)

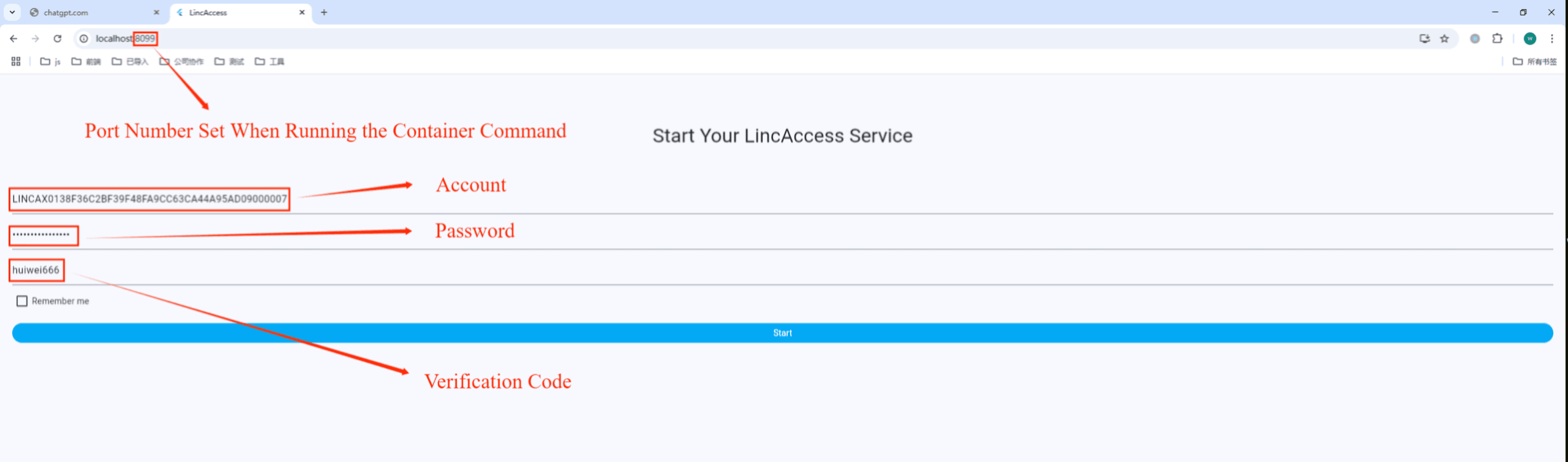

severlogin

2. Windows server configuration method 2（Only available on windows）
（1）Download, install, and launch linc_access.exe:

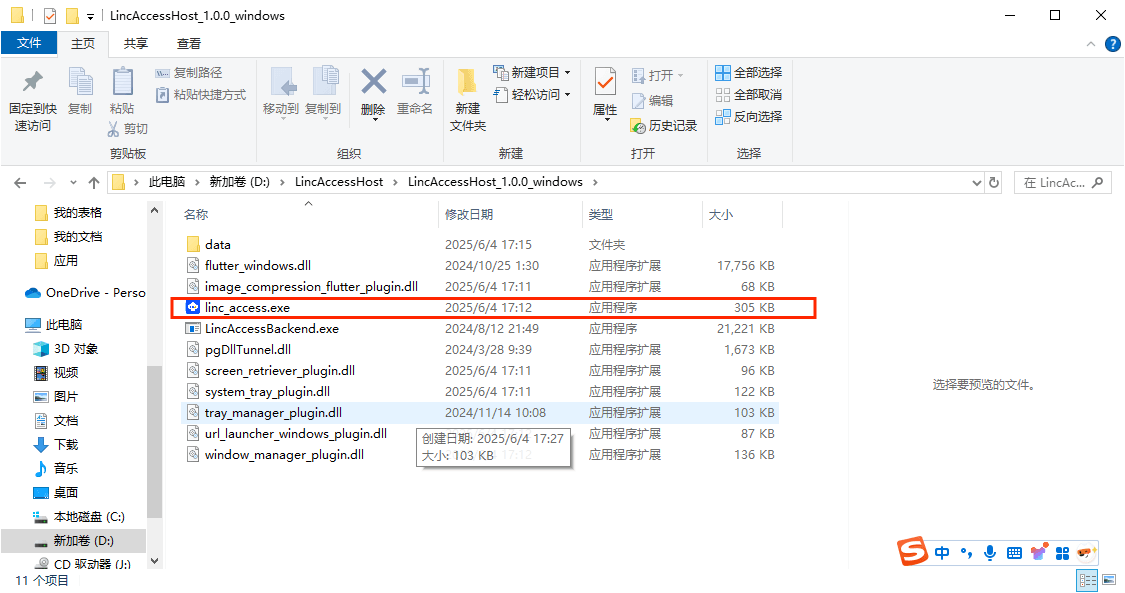

serveropen

（2）Enter credentials and pairing code:
  • LincAccess Account: Your account
  • LincAccess Password: Your password
  • Pairing Code: Verification code (confidential)

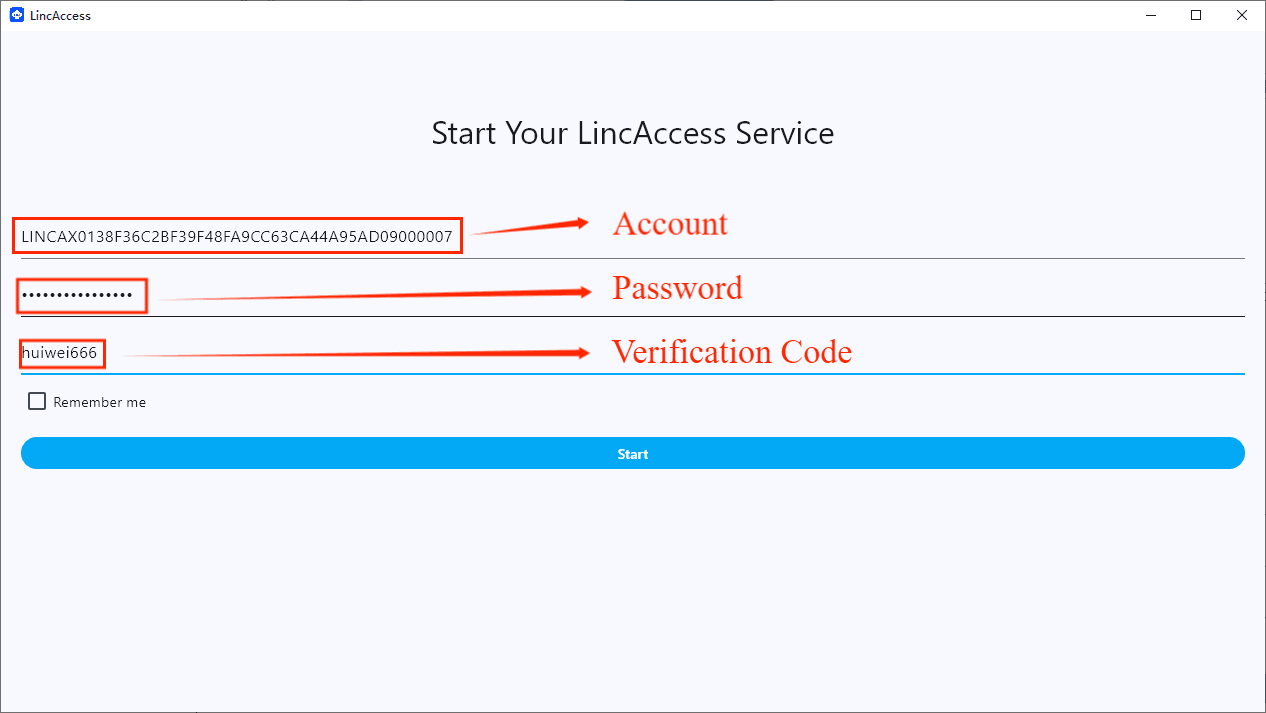

serverlogin2

III. Configuration of the Penetrating Machine

The penetrating machine refers to the device used for remote access. Configuration steps for Windows are below.

Windows System

  1. Download, install, and launch linc_access.exe:
    1. Open the webpage: https://www.lincos.ai/en/lincaccess-download/, and click to download LincAccess (Windows Version).
    1. Once the ZIP package is downloaded, extract its contents.
    1. Double-click linc_access.exe to launch

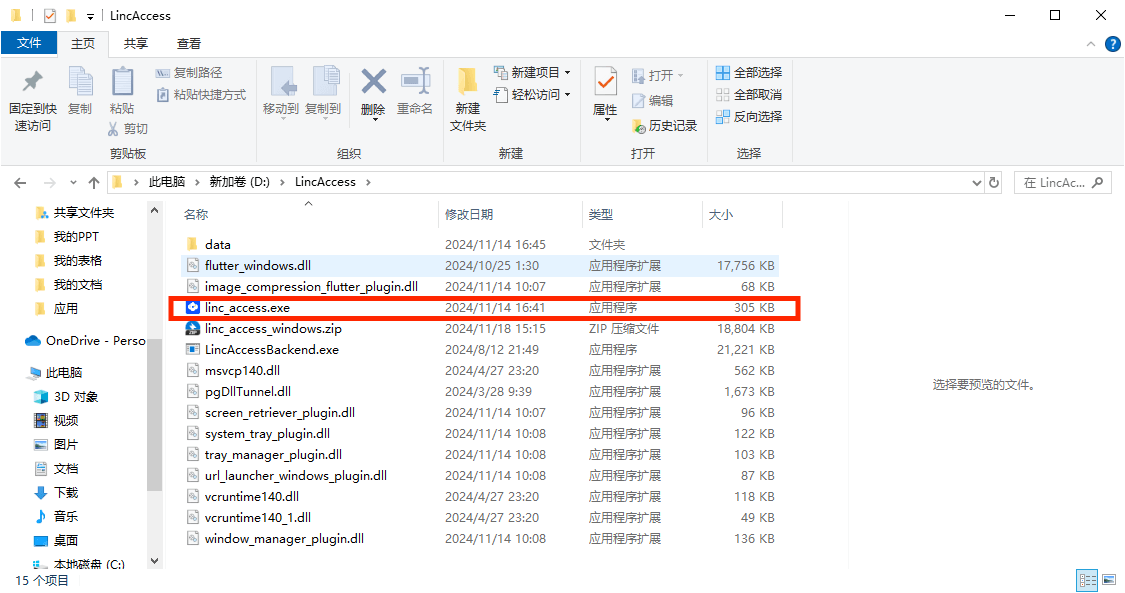

clientopen

2. Enter Credentials

  1. In the main interface:

    • Enter your LincAccess account
    • Enter the pairing code configured on the penetrated machine

  2. Click Connect to log in

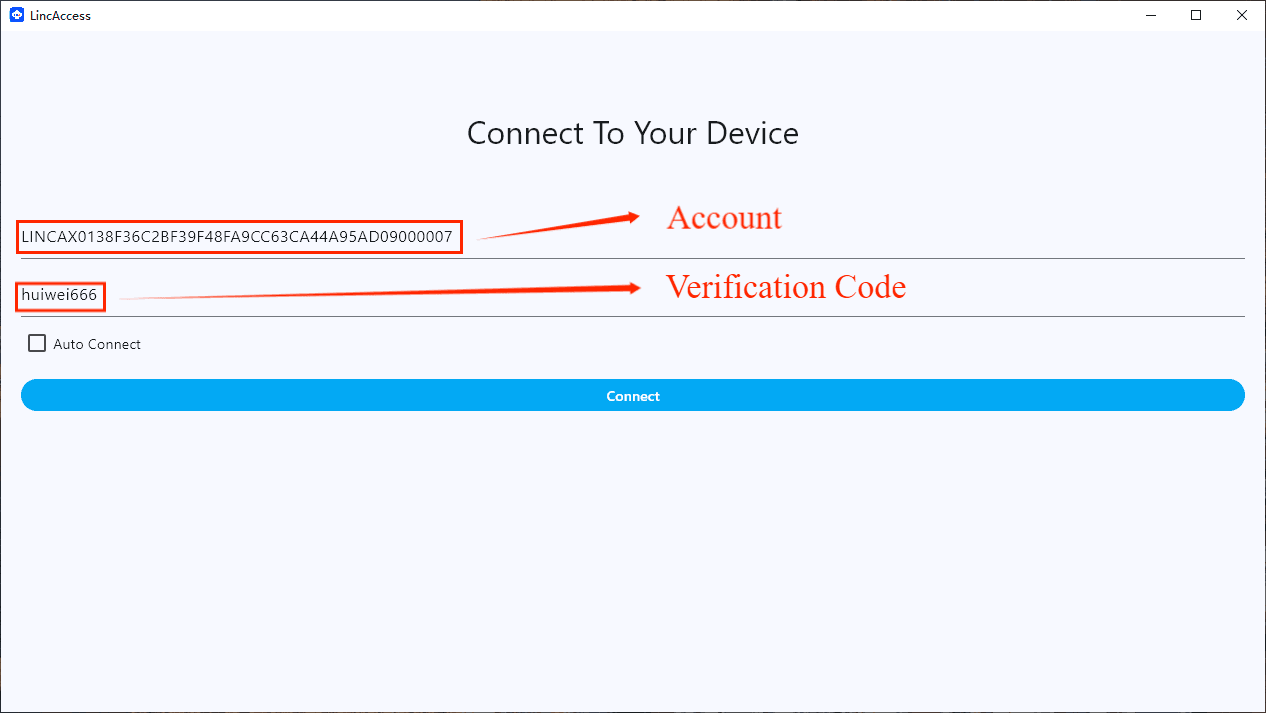

clientlogin

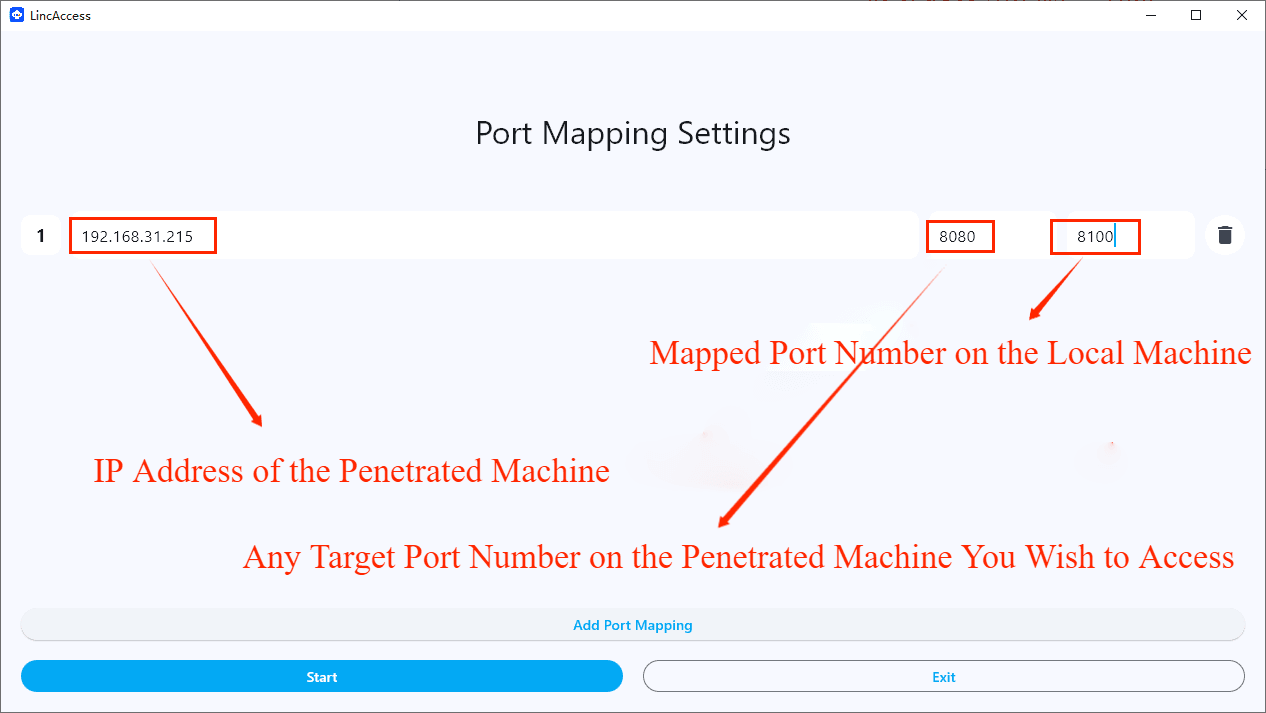

3. Add Port Mapping

  1. Click Add Port Mapping and configure:

    • Remote Host: IP of penetrated machine (e.g., 192.168.31.100)
    • Remote Port: Target port on penetrated machine (e.g., 8080)
    • Local Port: Mapping port on local machine (e.g., 8100)

  2. Click Start to activate mapping

clientsettingpng

4. Access Remote Resources

Open browser and visit:

http://127.0.0.1:[Local_Port]

Example: Local port 8100 → http://127.0.0.1:8100

clientweb

IV. Common Issues and Solutions

1. Browser cannot access container page:

  • Verify container status:

    BASH

docker ps

  • Ensure port isn't occupied by other services

2. Docker service fails to start:
  • Check system compatibility. Upgrade OS or use VM if unsupported
3. Windows client login failure:
  • Verify account/pairing code accuracy
4. Port mapping fails to access resources:
  • Confirm firewall rules allow port access on penetrated machine
